Equipment for Sale

---

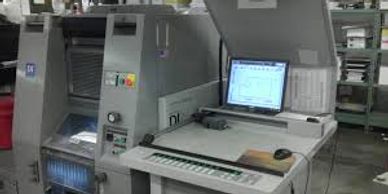

2007 Presstek 34DI X

+/- 18 Million Imp.

Call For quote

14x20 Heidelberg GTOZP 52-2P

Alcolor dampening system w/chiller conventional action clamping device register WEKO T6 frequency (Hz)60 Hz press voltage 230 volts

Call For quote

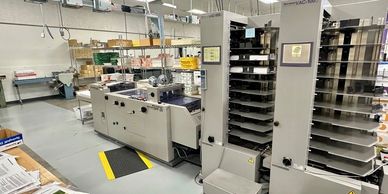

Standard Horizon 20 Bin (Vac 100) with SPF-20 Stitcher, and FC-20 Trimmer

The Standard Horizon SPF-20 combination stitcher/folder and FC-20 face trimmer boast top production speeds, a heavy-duty design, semi-automated control, and a higher profile for ease of set-up operation. The SPF-20 is equipped with two heavy duty stitching heads for extra system reliability and efficiency. The SPF/FC-20 can be put in-line with the full-line of Horizon collators.

Sheet Size Max. 350(W) x 500(L) mm (13.7″ x 19.6″)
Min. 120(W) x 180(L) mm (4.8″ x 7.1″)
Finish Size Max. 250(W) x 350(L) mm (9.8″ x 13.7″)
Min. 90(W) x 120(L) mm (3.6″ x 4.8″)
Stitching Thickness Max. 4 mm (0.15″) (only for side stitch)
Stitching & Folding Thickness Max. 2 mm (0.07″)
20 sheets of 60 gsm
Stitching Distance 73 to 160 mm (2.9″ to 6.2″) Adjustable
Stitching Wire Standard : No. 25 (0.5 mm) (0.020″)
Option : No. 28 (0.4 mm) (0.016″)
Production Speed Max. 3,660 booklets/hr. (A4-Finish)
Max. 4,050 booklets/hr. (A5-Finish)

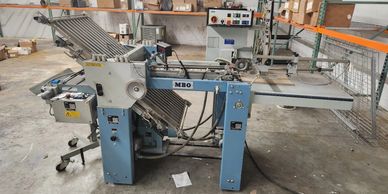

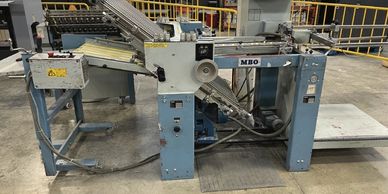

19.25″ x 26″ Pile Feed Folder
2 Fold Plates Up & 2 Fold Plates Down
T-49 Right Angle Folder:
Designed for use with T-49 Straight Folder
2 Fold Plates Up & 2 Fold Plates Down
Combo Rollers

Maximum Sheet Size: 19.25″ x 26″
Minimum Sheet Size: 4″ x 6″
Fold Rolls: Combo Rollers (Poly & Steel)
Fold Plate Configuration: 2-Up & 2-Down
Speed: 2000-6000 ipm
Slitter Shaft Diameter: 1 1/8″
Pile Stack Height: 25.5″
Pump Drive: 1.5 HP
Fold Roll Drive: 3/4 HP

Electrical:
208/230 Volt
3 Phase
60 Hz. Cycle

Dimensions (Main Unit):

Width: 40″
Length: 110″
Height: 42″
Weight: 2020 lbs.
R.A. Weight: 700 lbs.

Call For quote

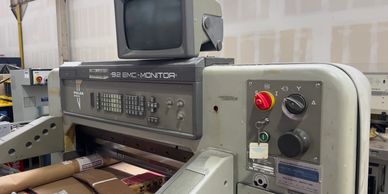

1Cutting Width: 92 cm / 36 1/4″
Clamp Opening: 11 cm / 4 5/16″
Power required (main drive): 3 kW / 4.1 H.P.
Clamp pressure:
Min.: 150 daN (= kp) / 330 lbs.
Max.: 3000 daN ( = kp) /6600 lbs.
Knife Thickness: 11.7 cm / 7/16″
Grinding Reserve: 3 cm / 1 3/16″
Smallest Cut:
Without False Clamp: 2 cm / 13/16″
With False Clamp: 9 cm / 3 1/2″
Backgauge Speed:
Slow: 2.7 cm/sec
Normal: 15.8 cm/sec
Electrical:
235V
14A
60 Hz
3 Phase

Call For quote

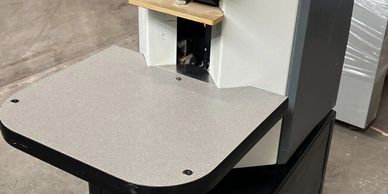

Net Weight 160 lbs

Dimensions (H x W x D)31" x 18.5" x 37"

Throat Height 8"

Table Size 27" x 27"

Sheet Size Maximum 27" x 27"Sheet Size Minimum 3" x 4" (5.7 cm x 10 cm)

Paper Range12 lb bond up to .010 cover stock (25 g/m2 up to 250 g/m2)

Electrical 120V AC, 10A or 220/240V AC, 50/60 Hz

• Call For Quote

  Year: 2006

Serial Number: 24xx

Impressions: 4 million +/-

Units: 4 Color DI, 13.39 x 18.11

Features : Optiplex 745 Harlequin, PS Level 3 Rip   Push Type Side Guide  Imaging Time 9 minutes & 2540 dpi  Speed:  7,000 SPH  11 Ink Key Zones per unit  2 ProFire Excel modules with 12 lasers  Auto Plate, Blanket and Roller Wash  Infrared Dryer  Ryobi PDS-E Control Systems

Call For quote

• 6 Up Machine 5/C W/Coater & Ext. Delivery

• Min. Sheet Size:279 x 200 mm (10.98 x 7.87”

▪ Max. Sheet Size: 750 x 600 mm (29.53 x 23.62") Physically, up to 788 x 600 mm (31.02 x 23.62”)

• Max. Print Area: 750 x 580 mm (29.53 x 22.83”)

• Paper Thickness 0.04 - 0.6 mm (0.0016 - 0.024”)

• Plate Size: Standard; 745 x 635 mm (29.33 x 25") Max. ; 760 x 635 mm (29.92 x 25”)

• Grafix Powder Spray Unit• Harris & Burno LC2 (Lithocoat) Coating Pump System▪

• Baldwin America GS4 Dryer System

• Tresu/Royse DWC 20-3 Circulator  Nonstop Delivery Racking System• Nonstop Feeder with Skid Type Paper Pile Board

1977 Polar 115 CE For Sale Previously Refurbed by Colter & Peterson w/ Micro-Cut

Paper Cutter Specifications
Size: 45" (115 cm)
Air Bed
Dual Side Tables
Factory Programs w/Micro-Cut
Safety Beams

235 Volts,  3 Phase,  60Hz

Call For quote

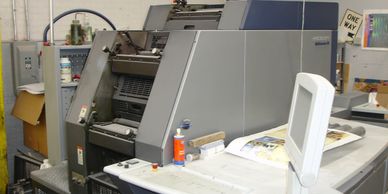

Heidelberg QM DI 46-4 Pro

  Year: 2002

Serial Number: 991-754

Impressions: 26.6 million +/-

Units: 4 Color DI, 13-3/8 x 18-1/8

Features : Postscript Level 3 Delta RIP on IBM eServer  CP Tronics 2000 with touch screen  Smart Spooling Technology

Speed: 10,000 SPH  12 Ink Key Zones (versus 8 on Classic)   Impression Cylinder Cleaner  Heidelberg Drystar Dryer  All New Rubber Rollers  Rebuilt PW and BW Units  On site press and prepress training  Color Proofer with Printer

Call For Quote

Heidelberg KORD 18x25 1/4

• Used HEIDELBERG KORD,  18 X 25" [46 X 64 CM]  REGULAR  DAMP, POWDER SPRAY, GOOD WORKING CONDITION
• Call For Quote

Heidelberg QM DI 46-4 Plus

  Year: 1999

Serial Number: 991-030

Low Impressions Only 10 Million (approximate) Postscript Level 2Harlequin Speed: 10,000 SPH 12 Ink Key Zones (versus 8 on Classic) On site press and prepress training New Style Plate Vacuum Cleaner Impression Cylinder Cleaner

Call For Quote
